#301 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 07 December 2012 - 09:08 PM

Bah, there are millions of these damned things. Everyone always freaks out when you cut up an original SNESSFC controller as if they're rare :/

#302 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 07 December 2012 - 09:09 PM

Yeah. At $10 a controller, I'd be okay. But Sega Saturn model 2 controllers are a pain to find normally, and at a good deal.



#303 Then64guy

Then64guy

    CAG Veteran

  • CAGiversary!

Posted 08 December 2012 - 04:28 PM

Wiggy you are a god among gamers dude.

#304 ZombieToast

ZombieToast

    He wears a disguise to look like human guys.

  • CAGiversary!

Posted 09 December 2012 - 02:50 AM

Psht, he's a god among gods.

#305 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 09 December 2012 - 09:10 AM

May wanna hold off on that assessment :( Just fubared that controller. Grounded something out, it's toast. Sucks, it was really close to being done. Off to eBay to see if I can't find another for dirt cheap...

#306 ZombieToast

ZombieToast

    He wears a disguise to look like human guys.

  • CAGiversary!

Posted 09 December 2012 - 10:27 AM

I rest my case. Gods are well-known for fucking shit up.

#307 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 09 December 2012 - 11:56 AM

Oh, at least you learned something. Do your checking twice lol.



#308 lmz00

lmz00

    CAGiversary!

  • CAGiversary!

Posted 09 December 2012 - 04:38 PM

I wish those controllers came with the purple SNES buttons. I would totally buy a kit to turn one of my SNES controllers wireless.


#309 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 12 December 2012 - 03:24 AM

Could always swap the purple buttons over. They're the exact same shape and size ;)

Oh, at least you learned something. Do your checking twice lol.


It was a really stupid mistake. I had 2 wires soldered to the board hanging loose. They got smooshed between the shell and a capacitor. Them I of course turned it on :(

#310 lmz00

lmz00

    CAGiversary!

  • CAGiversary!

Posted 12 December 2012 - 05:01 AM

Could always swap the purple buttons over. They're the exact same shape and size ;)



It was a really stupid mistake. I had 2 wires soldered to the board hanging loose. They got smooshed between the shell and a capacitor. Them I of course turned it on :(


How complex would a button swap be?


#311 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 12 December 2012 - 10:40 AM

About 2 minutes worth of "work".

Take apart both controllers, swap buttons, reassemble. Done.

#312 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 15 December 2012 - 11:35 PM

Hey, wiggyx. Do you know where to get a tool or board to program microcontrollers? Or do I have to build one myself. I was thinking about doing this project. http://denki.world3....converters.html It looks like I don't even need a breadboard for the converter, maybe one for the programming.



#313 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 16 December 2012 - 04:13 AM

For sure! They're dirt cheap and there's all sorts of freeware out there. When I'm back at my PC I'll post what info I have for ya :)

#314 catabarez

catabarez

    CAGiversary!

  • CAGiversary!

Posted 16 December 2012 - 10:58 AM

Wiggy are you trying to work on other wireless controllers as well? After the Awesome Controller kickstarted failed I needs wireless for all my old systems :P
Posted Image

#315 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 16 December 2012 - 11:43 AM

This is what you need right? http://n00bpwners.co...n64-saturn-etc/ Kinda crude looking, especially with the mutilation, but should be fine.



#316 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 16 December 2012 - 11:20 PM

I love how that page says "all you need is to know how to solder". My ass. I've been trying to get that shit to work for months :/

#317 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 17 December 2012 - 12:10 PM

Yeah, that's why I prefer wires.



#318 Strell

Strell

    LOBSTERS!....IN MY PANTS!

  • CAGiversary!

Posted 21 December 2012 - 08:00 PM

So I think this might be a good place to ask about this.

I want to make an audio switch for a 3.5mm line that can switch between headphones and speakers easily. Yes, I know I could just use an extension audio cord and just plug/unplug the desired device as needed, but I'd rather just leave everything plugged into a tiny switch box that has a button or toggle.

So basically:

Computer -> (3.5mm output audio) -> [Switch Box I'm building with button] ---> 3.5mm Headphones
............................................................................╚==> 3.5mm Speakers

I've searched online and can't really find something that would do this, and the few I do find are really ugly. I'm guessing this is a stupid simple project to do, and it would be fun to start out making something I need and can design to look nice.

Thoughts?


Posted Image
Aminal Crossing: Strell@Tazmily, 2836-3590- 0819

"One of the more...amusing screwballs around here..." - shrike4242
Join the El Hoardo Fan Club!
Threadless.com puts the fun back in laundry!...lafundry! HOORAY! (Referral link)
Wii Obscure FAQ and Facts Thread [Version 2.0] ::: Wii Shop Thread ::: DSi Shop Thread


#319 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 22 December 2012 - 01:15 PM

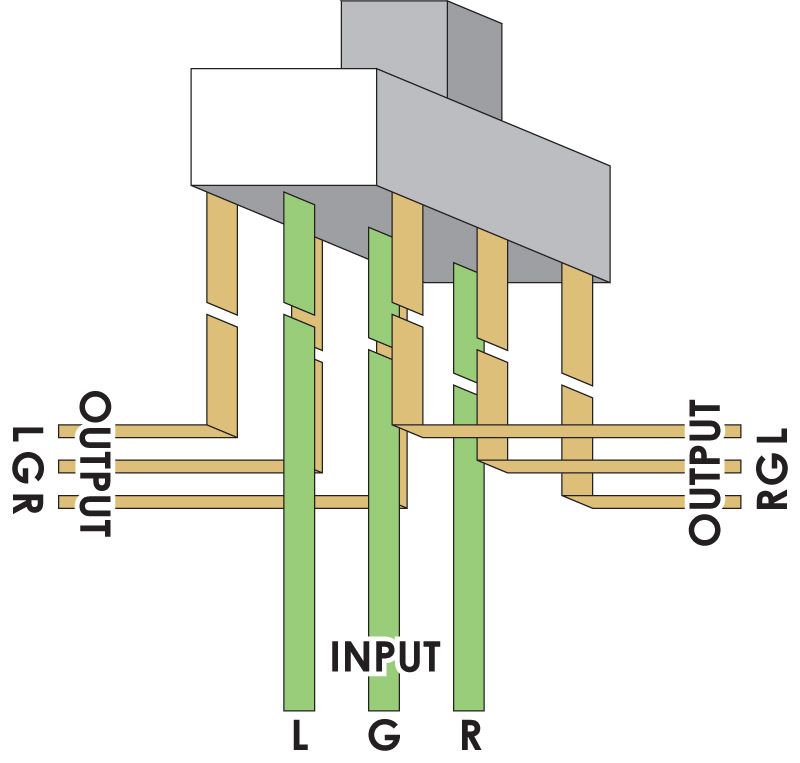

Simple. 3-pole on-on switch. This will allow you to connect 3 inputs (L signal, R signal, & Ground) with 6 outputs (2 sets, 1 on each side of the switch). The "on-on" implies that each throw of the switch is an "on" or complete circuit. I'll draw a little diagram, hold on.

Posted Image


Hey, wiggyx. Do you know where to get a tool or board to program microcontrollers? Or do I have to build one myself. I was thinking about doing this project. http://denki.world3....converters.html It looks like I don't even need a breadboard for the converter, maybe one for the programming.



You can get USB programmers for dirt cheap. This is what I have.

http://www.ebay.com/...=item1c2ea05d39

Then I use eXtreme Burner - AVR to write files.

http://extremeelectr...vr-programmers/

Edited by wiggyx, 22 December 2012 - 01:52 PM.


#320 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 22 December 2012 - 02:56 PM

Thanks. I'll probably lean toward this anyway though, considering lack of Paypal. http://www.amazon.co... programmer usb This is the same right, but I think the description says 10 pin, when the project I want to do has 20.



#321 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 22 December 2012 - 06:06 PM

What chip or chips are you trying to program? But yes, that's the exact same programmer ;)

Dude, my diagram shows up a different color ever time I check it. It was green before, now it's red. Xmas themed graphic? LOL! Maybe I'll re-save as a PNG. It's pretty hard to read when it's monochromatic :/

#322 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 22 December 2012 - 08:22 PM

The diagram says it's a Attiny 2313.
Posted Image

Frankly I'm surprised it doesn't need those other parts I've seen in other like adapters, like resistors and whatnot.
Posted Image

The diagram you posted is still showing up as green.



#323 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 22 December 2012 - 08:31 PM

After a little more searching, I can buy that adapter you recommended and build a 20 pin adapter for it. http://www.evilmadsc...-target-boards/



#324 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 23 December 2012 - 04:26 PM

Fixed that image.

#325 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 01 January 2013 - 07:39 PM

Blog is updated with a new product and FAQ :D

#326 lmz00

lmz00

    CAGiversary!

  • CAGiversary!

Posted 01 January 2013 - 09:53 PM

Any progress on putting the wireless controller parts into an original SNES controller?


#327 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 02 January 2013 - 12:02 AM

Actually yes, I have that all sorted out. Got it working, just need to clean up the mess of wires and pack everything into the controller and receiver housing.

I've reached out to the fellow that figured those setup out and asked either for his permission to use the info and files he's created to make kits and/or modded units to sell, or any interest he may have in making some money by helping out. He specifically states that he'd rather people not use his work for financial gain, and I can totally appreciate that and will respect his wish if that's what he wants in the end.

Hopefully I'll hear something back soon.

#328 lmz00

lmz00

    CAGiversary!

  • CAGiversary!

Posted 02 January 2013 - 09:02 AM

I would totally buy a kit to mod one of my controllers.


#329 detectiveconan16

detectiveconan16

    Look at that deal. It's so great!

  • CAGiversary!

Posted 04 January 2013 - 01:47 PM

According to this, these can make a fine kit for a wired retro adapter.:

Atmel ATmega8-P
12MHz Crystal, HC49U or U4 package
22pF ceramic disc capacitor
100nF ceramic disc capacitor
10µF electrolytic capacitor
68Ω resistor, 0.125w
2k2Ω resistor, 0.125w
3V6 Zener diode, 0.5w
1 row pin headers 1
USB-B PCB header 2
2x3 6 pin header 3
10kΩ resistor, 0.125w 4

And with a breadboard!

This could be cheaper than getting a wireless one.



#330 wiggyx

wiggyx

    Dorkity-dork-dork

  • CAGiversary!

Posted 04 January 2013 - 02:26 PM

I don't see the point :/
